THE VISION

Single Head Commercial Embroidery Machine


THE VISION is extremely cost-effective. When you have achieved initial success in your embroidery business and start looking for an embroidery machine with better performance, this machine is your perfect choice.

  • Institch i5 Electronic Control
  • Unique transmission structure
  • Servo motor for Main-axis
  • Aluminum alloy pulley
  • Continental Belt
  • Mold assembly process

What can I do with THE VISION embroidery machine?

There is no limit to imagination. You can embroider it as long as you can hoop it.
Use THE VISION to embroider hats, clothing, bags, hoodie jackets, leather, shoes, patches and more.

There is no limit to imagination, You can embroider it as long as you can hoop it. Use THE MlRROR to embroider hats, clothing, bags, hoodie jackets, leather, shoes, patches and more.

Make The Machine More User-Friendly

Easy to Assemble

Easy to Maintain

Easy to Use

Easier screw installation, convenient connection between the body and stand, which saves you a lot of time and hassle.

40% Fewer Screws

Image 1

One-way Screws

Image 1

Humanized Screw Holes

Image 1

Cup Groove Design

Image 1

Fewer Oiling Positions

The unique structural design effectively reduces the positions on the head that needs oiling.

Image 1

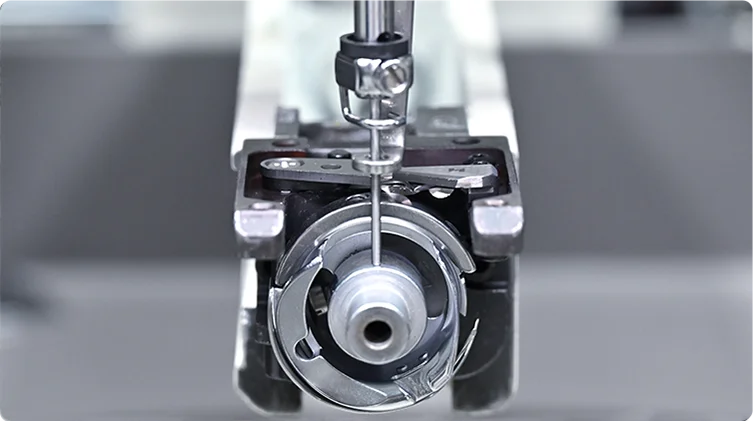

No Oiling for Shuttle Bed

With the use of oily powder sleeves and bearings, the shuttle bed no longer needs oiling.

Image 1

Simpler Operation Steps

Clear step-by-step instructions enable quick embroidery preparation in three steps.

Image 1

Support WIFI Transmission

Fast, automatic and stable WIFI transmission helps users get rid of USB completely.

Image 1

2 Long Strip Light

With the 2 long strip lights, it achieves higher light intensity and wider irradiation area.

Image 1

Extra Large Storage Space

With the two levels of storage space, you can easily store your frequently used items.

Image 1

2-in-1 Needle Plate

Flat and hat needle plate are combined into one,no more frequent switching.

Image 1

Installation of Bracket

The bracket retains only 4 mounting holes and features a left & right error-proof design.

Image 1

Why it's So Good at Embroidery?

Every factor that affects the precision of embroidery has been considered.
Electronic control, motor, transmission system, assembly process, etc. Where you cannot see are details.

Every factor that affects the precision of embroidery has been considered. Electronic control, motor, transmission system, assembly process, etc. Where you cannot see are details.

Original Mechanical Structure

- Flat style body design
- Mortise and tenon structure
- Unique transmission structure

Image 1

Electronic Control Upgrade

- Extremely stable software
- Excellent-quality hardware
- Deeply optimized parameters

Image 1

Motor Upgrade

-Servo motor for Main-axis
-Better motors for X-axis & Y-axis
-More Precise, More Stable

Image 1

Pulley Upgrade

- Aluminum alloy material
- Hard oxidation treatment
- Lower motion inertia
- High enough strength

Image 1

Belt Upgrade

- Continental belt
- Smoother tooth bite
- Quieter in motion
- Longer service life

Image 1
Image 1
Image 1
Image 1
Image 1
Image 1

The Perfect Choice for Hat Embroidery

Curved Needle Plate

Stride Jump Function

Optimization of Cap Drive

Unique transmission structure

Embroider on The Side of Hat

Less gap between hat and needle plate

Image 1
Image 1
Image 1
Image 1
Image 1

Institch i5 Electronic Control

Simpler Operation Steps

Support WIFI Transmission

Quick to Add Different Hoops

Combination & Decomposition of Patterns

Batch Production of Patch Patterns

Batch Import, Export & Delete of Patterns

In The Box

Basic Information

 Packingwooden case
 Package Weight257kg/566lbs
 Machine Weight207kg/456lbs
 ConnectionUSB/WIFI
 Needles15
 Max Emb Area500*400mm
 Package Size118*113*88cm
 Machine Size166*108*106cm
 VoltageAC110V-230V
 Heads1

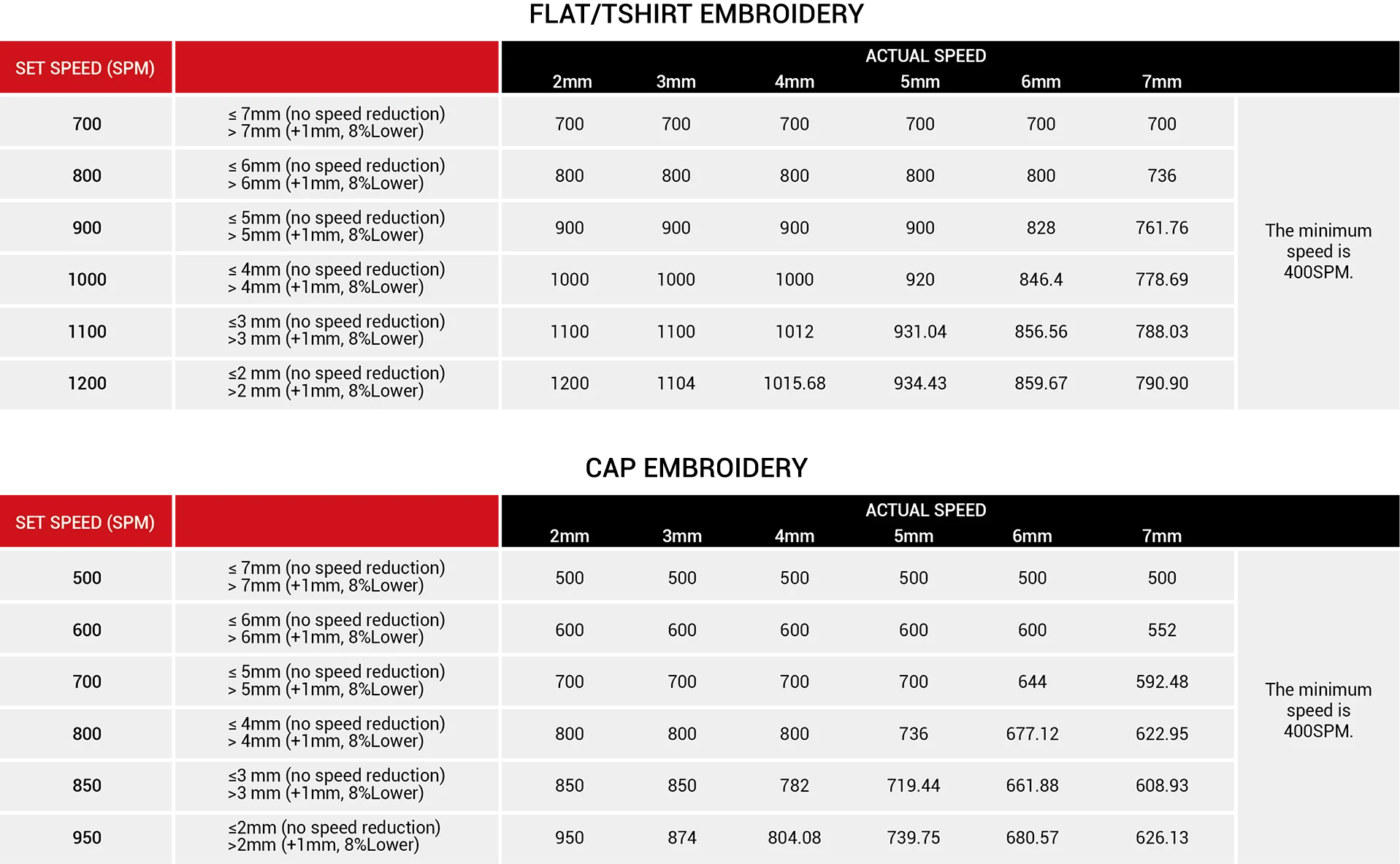

 Max Speed     1200 spm
 Computerinstitch 5.0
   Packingwooden case
   Package Weight257kg/566lbs
   Machine Weight207kg/456lbs
   ConnectionUSB/WIFI
   Needles15
   Max Embroidery Area500*400mm(19.7"*15.7")
   Package Size118*113*88cm(46.5"*44.5”*34.6")
   Machine Size166*108*106cm(65.4"42.5"*41.7")
   VoltageAC110V-230V 50/60 HZ
   Heads
   Maximum Speed     1200 spm
   Computerinstitch 5.0
